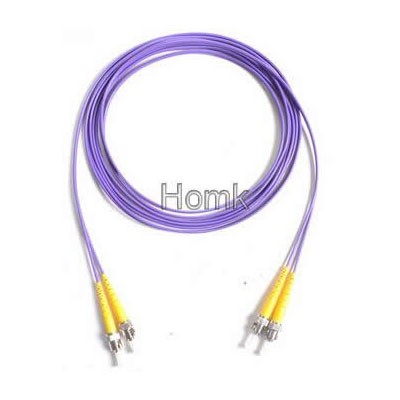

ST-ST OM4 Fiber Optic Patch Cord
ST-ST OM4 Fiber Optic Patch Cord
Our optical fiber patch cord is high return loss and low insertion loss ,
Insertion loss of FC fiber patch cord is less than 0.3dB,Return loss of fiber LC patch cord is UPC more than 55dB ,APC is more than 60dB
Standard: IEC, Telcordia GR-326-CORE
Polish:PC/UPC/APC
Operating temperature range: -40°C–80°C
Storage temperature range: -40°C–80°C
Tensile strength: >10kg
Fiber cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC or LSZH cable is available,Fiber FC optic patch cord with excellent changeability and repeatability
| Spec. | fiber optic patch cord |
| Insertion loss | Less than 0.2dB |
| Return loss | MM more than 35dB |
| SM more than 55dB | |
| APC more than 60dB | |
| Repeatability | Less than 0.2dB |
| Changeability | Less than 0.1dB |
| Operting termperature | -40°C~80°C |
| Storage temperature | -40°C~80°C |
| Tensile strength | >10kg |
| Min.bending radius | 35mm |
| Length | Customized |
