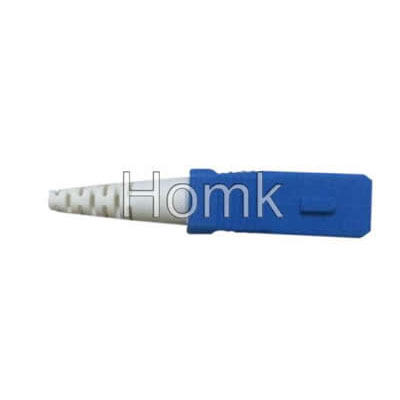

SC SM SX short boot connector
SC SM SX short boot connector
1. Features:
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
|
2. Specifications:
|
||||||||
|
Items
|
Single mode
|
Multimode
|
||||||
|
PC
|
UPC
|
APC
|
62.5/125
|
50/125
|
50/125 10G
|
|||
|
Insertion Loss
|
<0.2dB
|
<0.3dB
|
||||||
|
Return Loss
|
e45dB
|
e50dB
|
e60dB
|
e35dB
|
||||
|
Durability
|
<0.1dB typical change,500 matings
|
|||||||
|
Operating Temperature
|
-40 to +75
|
-40 to +75
|
||||||
|
Ferrule Hole Sizes
|
125.0+1/-0um, Conentricity:d1um
|
125um,Conectricity:1d3um
|
||||||
|
125.3+1/-0um, Conentricity:d1um
|
127um,Conectricity:1d3um
|
|||||||
|
125.5+1/-0um, Conentricity:d1um
|
128um,Conectricity:1d3um
|
|||||||
|
126.0+1/-0um, Conentricity:d1um
|
||||||||
