SC/APC Male to Female SCPC fiber attenuator 0dB

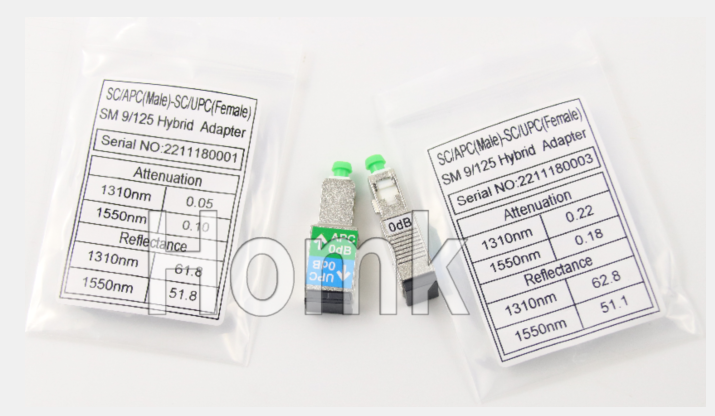

Product name : SC/APC Male to Female SCPC fiber attenuator 0dB
Products Category: > Fiber Optic Attenuator
SC/PC Female to SC/APC Male fiber attenuator 0dB
Feature
High return loss fiber optic attenuator
Max operation power(1W)
Low wavelength relativity fiber optic attenuator
Low polarization related loss fiber optic attenuator
Compact design
Fiber optic attenuator Application
Fiber optical distributing frame
Fiber optical network system
Hi-speed fiber optical transmission system
CATV system
Long distance DWDM system
Optical add-drop multiplexers (OADM)
Fiber attenuator Specifications
| Attenuation value | 0 1 3 5 10 15 20 25 dB |
| Attenuation precision | <5dB±0.3dB <10dB±0.5dB >10dB±10% |
| Return loss | PC >45dB |
| Operation wavelength | 1310nm and 1550nm(SM) |
| Polarization loss | <0.1dB |
| Operation temperature | -40℃ ~ +75℃ |
| Storage temperature | -40℃ ~ +85℃ |
| Temperature(Unencapsulation) | 95%RH Apply Telecordia standard(GR-910-CORE) |
