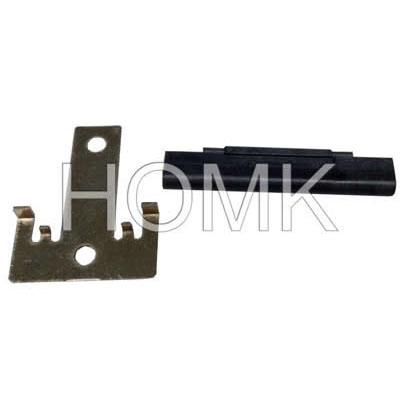

Mechanical Splice
Mechanical Splice
1. Mainly used for butting the bare fiber and bare fiber,and suitable for the cabinet
2. Unique Box type crimping technology
3. Precision metal alloy components coaxial autocollimator on the core, excellent durable optical performance
4. Bare fiber, tight-clad and pigtail triple can fully meet environmental requirements for end-customer
5. High rate of success for installation and easy installation
6. It is applicable for optical fiber splicing and restoration for damaged lines
| ITEM | Technical Parameters |
| Applicable for | φ 0.25mm& φ 0.90 mm Fiber |
| Optical fiber diameter | 125μm ( 657A& 657B ) |
| Tight buffer diameter (μ m) | 250μm & 900 μm |
| Fiber mode | Single & multimode |
| Operation time | About 10s (no fiber cut) |
| Average Insert loss | ≤ 0.10dB(1310nm & 1550nm) |
| Return loss | ≤ -40dB |
| Fastening strength of naked fiber | > 5 N |
| Fastening strength of naked fiber holder | > 8 N |
| Using temperature | -40~+75°C |
| Repeatability(10 times) | Δ IL ≤ 0.2dB ΔRL ≤ 5dB |
