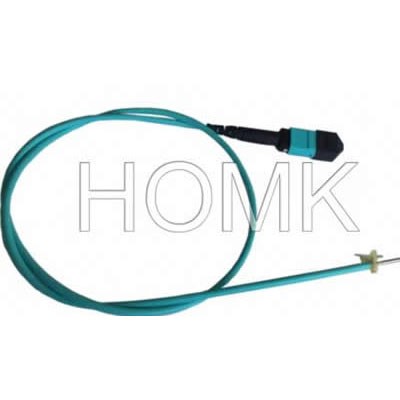

MPO Armoured Fiber Optic Pigtail
MPO Armoured Fiber Optic Pigtail
Product description
Fiber Optic Pigtail is used to interconnect Transmission equipment to the Fiber optic patch panel. The Pigtail made by SAILING supports longer distance with lower loss for gigabit Ethernet, fiber channeland internet protocol applications. It is Specifically designed for use with today’s narrower aperture components. Specifications 1. Insertion loss:(Single-mode)PC≤0.3dB,UPC≤0.2dB APC≤0.2dB (Multi- mode):PC≤0.2dB 2. Return loss:PC≥45dB,UPC≥50dB APC≥65dB 3. Durability(1000times):≤0.2dB 4. Temperature range:-40 — +80 Performance Advantages 1. Compliance with the standard of IEC and YD-T826/1996 2. High return loss and Low insertion loss 3. Good reliability& stability 4. Three types:PC/UPC/APC
Specification:
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB
Maximum ≤0.3dB |
≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
