In-line fiber closure(GPJ(04))
Product name : In-line fiber closure(GPJ(04))
Products Category: > Fiber Splice Closure & ODF & Terminal box

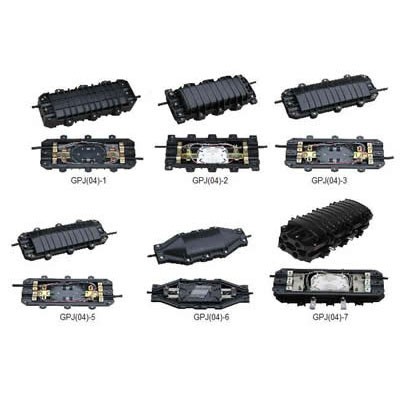

In-line fiber closure(GPJ(04))
Description：
With 4 fiber cables in-out ports
Cable diameter: Ф10～Ф22
Suitable for duct,aerial,direct buried application
|
Item
|
GPJ(04)-1
|
GPJ(04)-2
|
GPJ(04)-3
|
GPJ(04)-5
|
GPJ(04)-6
|
GPJ(04)-7
|
|
Dimension(mm）
|
435x190x85
|
435x190x120
|
435x190x120
|
435x190x80
|
435x140x75
|
435x190x170
|
|
Weight(kg)
|
2.6
|
2.8
|
2.6
|
2.3
|
1.5
|
4.7
|
|
Cable diameter(mm)
|
Ф10～Ф17
|
Ф10～Ф22
|
Ф10～Ф22
|
Ф10～Ф17
|
Ф10-Ф12.5
|
Ф10～Ф22
|
|
Cable ports
|
2 in,2 out
|
1 in,1 out
|
4 in,4 out
|
|||
|
Capacity of splice tray
|
24
|
24
|
24
|
24
|
12
|
24
|
|
Max pcs of splice tray
|
4
|
8
|
8
|
4
|
4
|
12
|
|
Max capacity
|
96
|
192
|
192
|
96
|
48
|
288
|
|
Sealing structure
|
Sticky structure
|
|||||
Packing infromation
|
Type
|
Inner carton size (mm)
|
Inner carton weight
(kg)
|
Outer carton size (mm)
|
Outer carton weight (kg)
|
Q’ty per cartons (pcs)
|
|
GPJ(04)-1
|
496x196x98
|
2.6
|
515x425x575
|
27.6
|
10
|
|
GPJ(04)-2
|
496x196x138
|
2.8
|
515x425x575
|
24.0
|
8
|
|
GPJ(04)-3
|
496x196x138
|
2.6
|
515x425x575
|
22.4
|
8
|
|
GPJ(04)-5
|
496x196x98
|
2.3
|
515x425x575
|
24.6
|
10
|
|
GPJ(04)-6
|
440x155x80
|
1.5
|
470x440x340
|
16.3
|
10
|
|
GPJ(04)-7
|
496x196x180
|
4.7
|
515x425x575
|
30
|
6
|
