Shenzhen Homk Telecom Tech Co., Ltd.

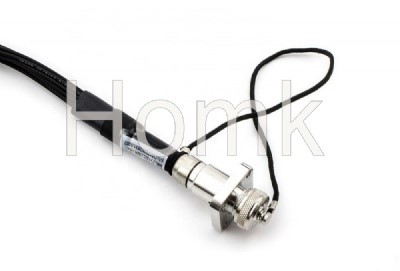

IP68 ODC-MPO ftta fiber patch cord connector
Product name : IP68 ODC-MPO ftta fiber patch cord connector
Products Category: > Waterproof Fiber Series Products
The ODC Connector together with the far transmission cable, are becoming the standard interface specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.
The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection class IP68. They are well suited for Industrial and Aerospace and Defense applications.
Screwed locking mechanism, confirm the connection is long-term and reliable.
Guide structure, can be installed blindly, simply and quickly.
Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
Compact appearance, robust and flexible.
Sealing design through wall.
Reduce the times of splicing.
Indoor and Outdoor applications
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Pecification
| Fiber Core | 2,4,6,8 etc | |||
| Mode | Singlemode | Multimode | ||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | ||
| Polishment | UPC | APC | UPC | |
| Insertion Loss(Max.dB) | 0.7 | 0.6 | ||
| Return Loss(Min.dB) | 55 | 60 | 35 | |
| Mating times | 500 Min | |||
| Durability(Max.dB) | 0.2 | |||
| Reaptability(Max.dB) | 0.5 | |||
| Operating Temperature(℃) | -40~+85 | |||
| Storage Temperature(℃) | -40~+85 | |||
