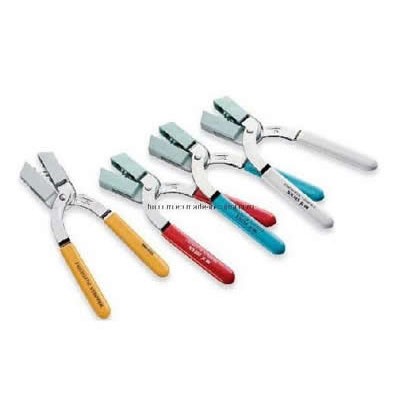

Fiber Optic Stripper (NN203/254/305)
Fiber Optic Stripper (NN203/254/305)
1. The fiber optic stripper has 22 different patented NO-NIK tools insizes ranging from 102 to 1372 microns.
2. This fiber optic stripper is exclusive centering device positions fiber for precise scoring and removal of buffer coating. And this fiber optic stripper has razor-sharp blades completely score the buffer.
3. Fiber optic stripper is color-coded, cushion-grip handles for quick identification.
4. This fiber optic stripper is platic heads which make contact only with the buffer, center and support yopur workon both sides.
5. This fiber optic stripper cutting blades made from razor quality steel score the buffer completely.
6. Back-up blades support the cutting blades, nest positively, and”lock up”when the tool is closed to maintain perfect concentricity.
7. Buffer being removed acts as guide and protection for the fiber.
8. Stripping blade diameter clearly marked on platic handle.
Our this fiber optic stripper arrow indicates direction pressure should be applied when stripping on head.
Length: 5.3in(135mm)
Weight: 16oz(45g)
Model | Handle color | Minimun stripping blade diameter | Part number | |
(microns) | (inches) | |||
NN102 | Navy | 102 um | 0.004 in | 46220 |
NN127 | Silver | 127 um | 0.005 in | 46225 |
NN152 | Gold | 152 um | 0.006 in | 46231 |
NN175 | Mustard | 175 um | 0.007 in | 46235 |
NN203 | Red | 203 um | 0.008 in | 46241 |
NN254 | Lt. Blue | 254 um | 0.010 in | 46249 |
NN305 | White | 305 um | 0.012 in | 46255 |
NN1118 for plastic fiber |
Brown | 1118 um | 0.044 in | 46223 |
NN1372 for plastic fiber |
Clear | 1372 um | 0.054 in | 46228 |
