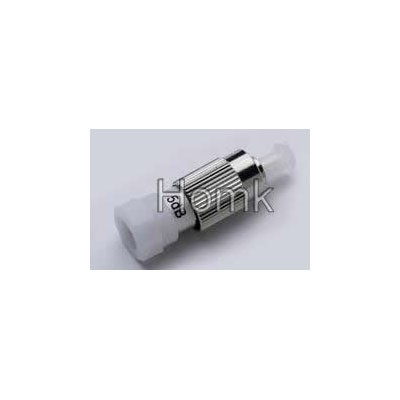

FC Male to Female Attenuator 5dB
FC Male to Female Attenuator 5dB
Specifications:
Male to Female Fiber Optical Attenuator
1-30dB is available
Good quality
Best price
Fast delivery
Features:
High power 1W continuous operation tested over 1000 hours
Precise attenuation
Return loss UPC >50 dB APC >60 dB
Low ripple broadband design for operation at both 1310 and 1550 nm
Attenuation range for SC, FC, and LC types 1 to 13 dB in 1 dB increments, 15 dB, and 20 dB
Applications:
Fiber optic systems
CATV and telecommunication systems
Receiver padding for optical receiver protection
Optical power equalization
Increasing dynamic range for apparatus
| Parameter table: Description | Unit | Condition | Values |
| Return Loss | dB | PC | ≥50 |
| dB | APC | ≥60 | |
| Attenuation Accuracy | dB | 1dB-10dB | <0.5 |
| dB | 11dB-20dB | <1 | |
| Operating Wavelength | nm | SM | 1200,1600 or 1310,1550 |
| nm | MM | 850, 1300 | |
| Polarization Dependent Loss | dB | / | ≤0.2 |
| Maximum Input Power | mW | / | 200 |
| Operating Temperature | °C | / |
-40 to +80
