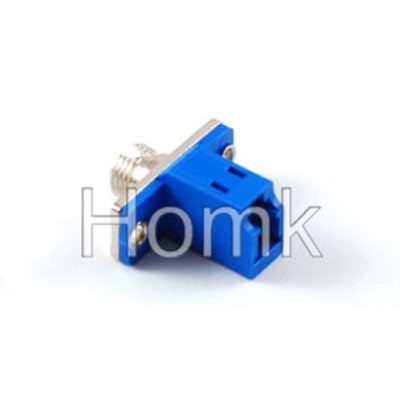

FC-LC SM SX Hybrid Fiber Optic Adapter
FC-LC SM SX Hybrid Fiber Optic Adapter
Hybrid optical adapters with male to female configuration are very useful in connecting patchcords with different connectors. Because both a connector plug (male) and an adapter socket (female) are provided, this hybrid adapter fits in various circumstances, offering flexibility and reducing the size, weight and complexity of the system. It has low insertion loss and high return loss. We provide hybrid adapters bridging popular connector types, such as FC, SC, ST and LC. Features: •Insertion loss < 0.3dB •Return loss > 50dB (SM) •High repeatability •High environmental stability •Various of connector and adapter types Specifications: Alignment Sleeve ZrO2 Housing Material Zn-Alloy or Cu-Ni (metal) & Engineering Plastic Blue (plastic) Insertion Loss 0.30dB max., 0.10dB typ Durability 500 matings, 0.2dB max. increase Retention Force 200~600grams Operating Temperature -40~+80°C
| Parameter | ||
| Mode | S.M (Zroz) | M.M (P.B) |
| Insertion Loss | ≤0.2 dB | ≤0.3 dB |
| Mating Durability(500 times) | ≤0.2 dB | |
| Operating Temperature(°C) | -40°C~+75°C | |
| Parameter | ||
| Return Loss | ≥45 dB ( SPC ) , ≥55 dB ( UPC ),≥65 dB ( APC ) | |
| Attenuation Tolerance (dB) | 1-10dB<±1.0dB | |
| 11-25dB<±10% | ||
| 1-10dB<±0.5dB | ||
| 11-25dB<±5% | ||
| Operating Wavelength (nm) | 1310±10nm | |
| 1550±10nm | ||
| 1310 and 1550±10nm | ||
| Operating Temperature(°C) | -40°C+~75°C | |
