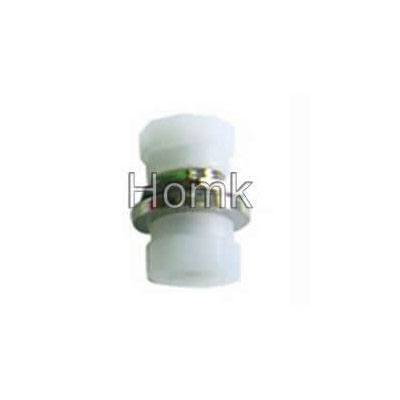

FC Big D Adapter
FC Big D Adapter
All FC fiber optic adaptors are simplex.
Features:
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
- Zirconia sleeves or Phosphor bronze sleeves
- D-shaped easily installs into panel mount
- RoHS compliant
Applications:
- Fiber Optic Telecommunications
- LAN (Local Area Network)
- FTTH (Fiber To The Home)
- CATV&CCTV System
- High speed transmission systems
- Fiber optic sensing
- Industtial, Mechanical and Military
Specification:
| Product | FC Adapter | |||
| Mode | SM | MM | ||
| Insertion Loss | ≤0.2dB | ≤0.3dB | ||
| Return Loss | ≥45dB | — — | ||
| Mating Durability(500times) | Additional Loss≤0.1dB,Return Loss Variability<5dB | |||
| Temperature Stability(-40°C~85°C) | Additional Loss≤0.2dB,Return Loss Variability<5dB | |||
| Operating Temperature | -40°C~+85°C | |||
| Storage Temperature | -40°C~+85°C | |||
