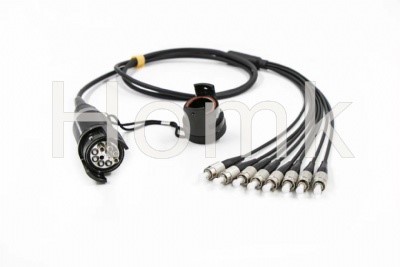

8 Core Socket and Plug ODC- FCPC FTTA Patch Cord
Product name : 8 Core Socket and Plug ODC- FCPC FTTA Patch Cord
Products Category: > Waterproof Fiber Series Products
8 Core Socket and Plug ODC- FCPC FTTA Patch Cord
Description
HOMK TECH manufactures 2,4core ODC antenna feeder patch cables are made up of ODC plug/socket of outdoor connector with robust mating screwed mechanism and twin core plug duplex LC connectors. And the optical path is realized by connecting BBU(Building baseband Unit) to RRU(Remote Radio Unit). In order to ensure waterproof sealing, the ODC connectors are IP68/EMI protection, Salt-mist proof, the outdoor cable sheath adopts the low smoke halogen-free flame retardant materials (LSZH).
Applicants
Naval and ship building
Surveillance systems
Oil field, mine communication connection
Military communication equipment
Features
Easy and cost effective installation
High Vibration and Mechanical Resistance
Compact appearance
Be Installed Blindly,Quickly,Simply
pecification
| Fiber Core | 2,4,6,8 etc | |||
| Mode | Singlemode | Multimode | ||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | ||
| Polishment | UPC | APC | UPC | |
| Insertion Loss(Max.dB) | 0.7 | 0.6 | ||
| Return Loss(Min.dB) | 55 | 60 | 35 | |
| Mating times | 500 Min | |||
| Durability(Max.dB) | 0.2 | |||
| Reaptability(Max.dB) | 0.5 | |||
| Operating Temperature(℃) | -40~+85 | |||
| Storage Temperature(℃) | -40~+85 | |||
