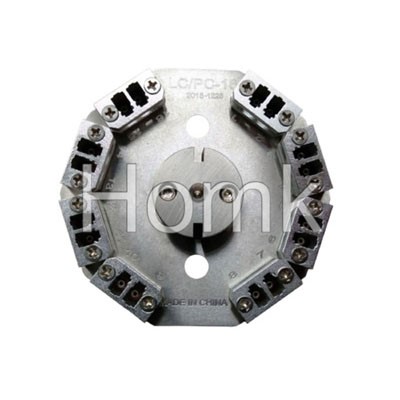

16 Connector Ferrule LC/PC-16 Duplex Fiber Optic Polishing Jig For Central Polishing Machine

The optical fiber polishing jig is center pressurization, Independent compression of each connector. The optical fiber polishing jig pass rate with Interference> = 98% (100% Typical, according to IEC), the optical fiber polishing jig APPEX OFFET is within 30. This optical fiber polishing jig is high stability and good surface quality.

The LC/PC-16 jig using high quality steel with heated treat, the hardened steel S136 provide long service life. This optical  fiber polishing jig can design the jig of SC, FC, ST, LC, MPO and  E2000, FA, etc, according to the customer request.

1. This optical jig is used in central corners fiber polishing machine, to plishing connectors.

2. It adopt center pressurization way,  eliminate ferrules show the different length effects on polishing.

3. Each polishing jig can hold 16 LC Duplex connectors. The optical fiber polishing jig has high production efficiency.

4. The plugs of this jig  can be interchanged, extend optical fiber polishing jig life.

5. The LC/PC-16 jig has good quality, high efficiency.

6. All kinds of optical fiber polishing jig can be customized according by customer requirment.
