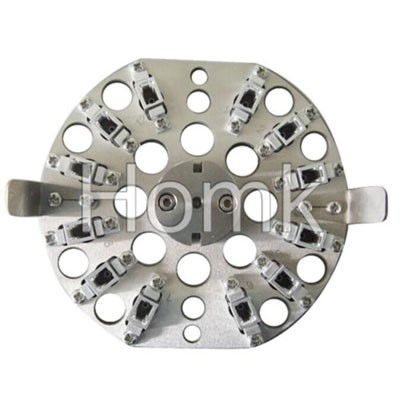

12 Connector Ferrule LC/PC-12 Fiber Optic Polishing Jig For Central Polishing Machine

The optical fiber polishing jig is IPC Structure, Independent compression of each connector. The optical fiber polishing jig  pass rate with  Interference> = 98% (100% Typical, according to IEC), the optical fiber polishing jig  APPEX OFFET is within 30. This optical fiber  polishing jig  is high stability and good surface quality.

The LC/PC-12 jig using high quality steel with heated  treat, the hardened steel S136 provide long service life. This optical  fiber polishing jig  can design the jig of SC, FC, ST, LC, MPO and  E2000, FA, etc, according to the customer request.

1. This optical jig is used in central corners fiber polishing machine, to plishing connectors.

2. It adopt independent pressurized way, eliminate ferrules show the different length effects on polishing.

3. Each polishing jig can hold 12 connectors. The optical fiber polishing jig  has high production efficiency.

4. The plugs of this jig can be interchanged, extend optical fiber polishing jig  life.

5. The SC/PC-12 jig  has good quality, high efficiency.

6. All kinds of optical fiber polishing jig can be customized according by customer requirment.
